Krauser MKM1000

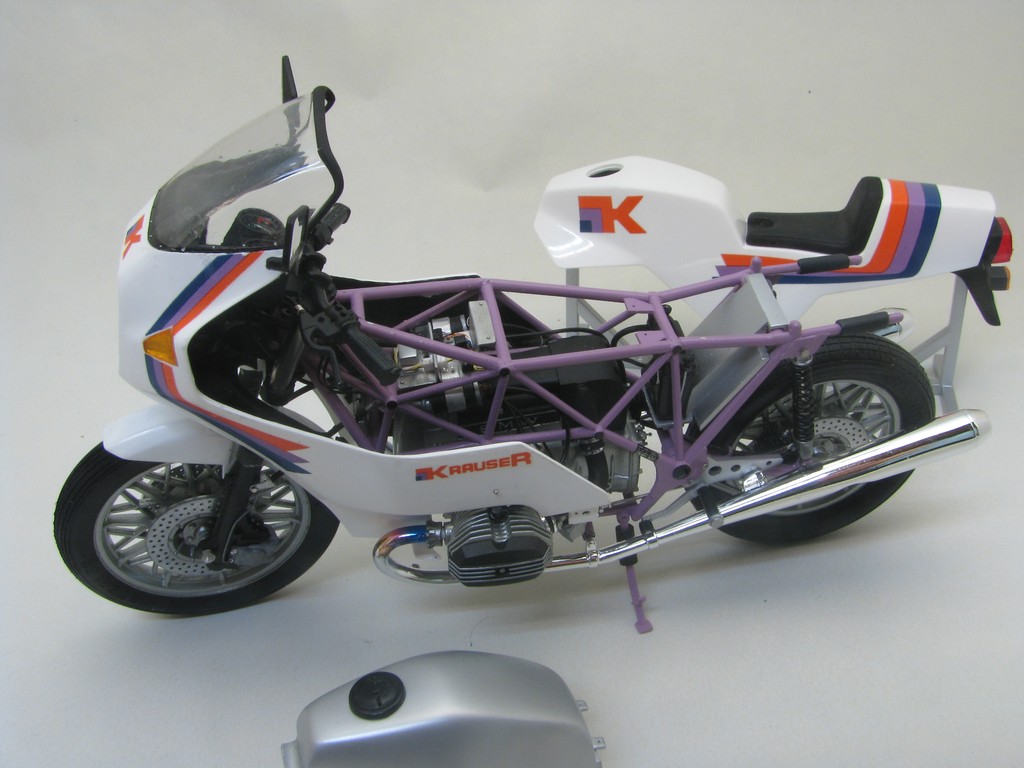

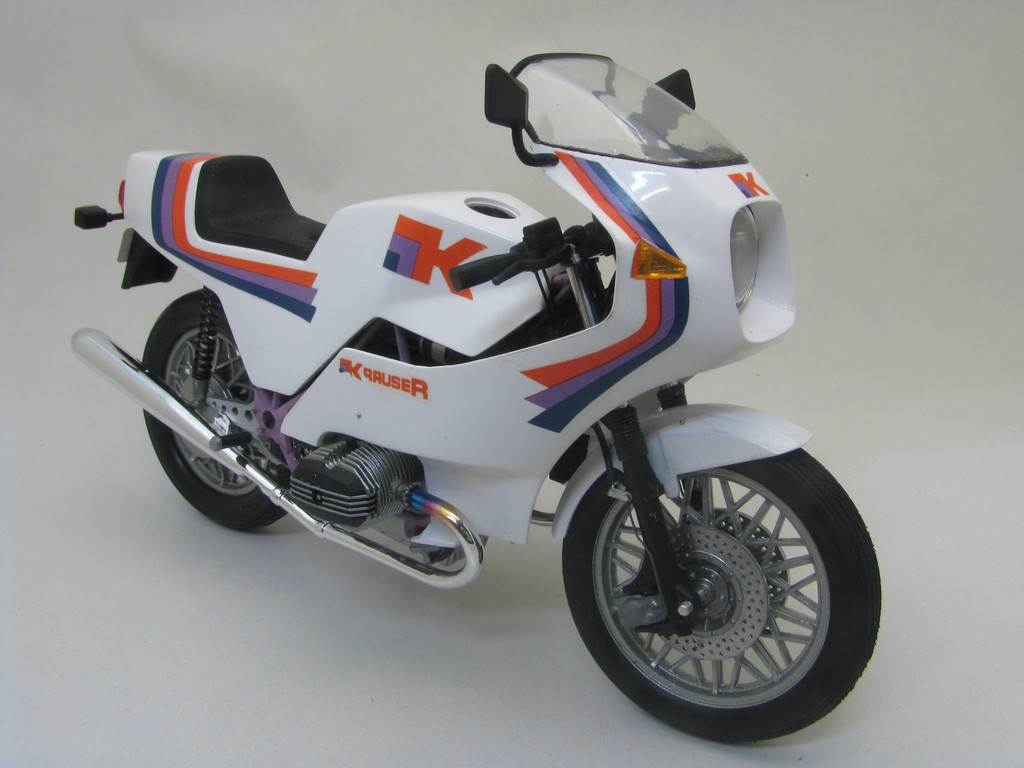

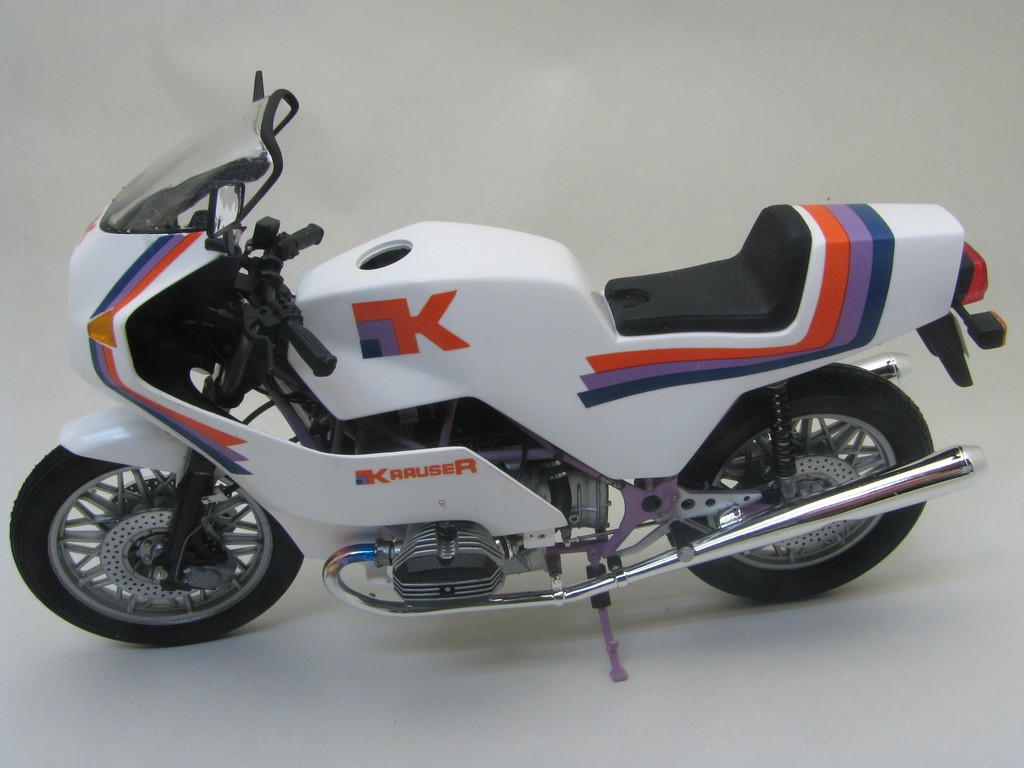

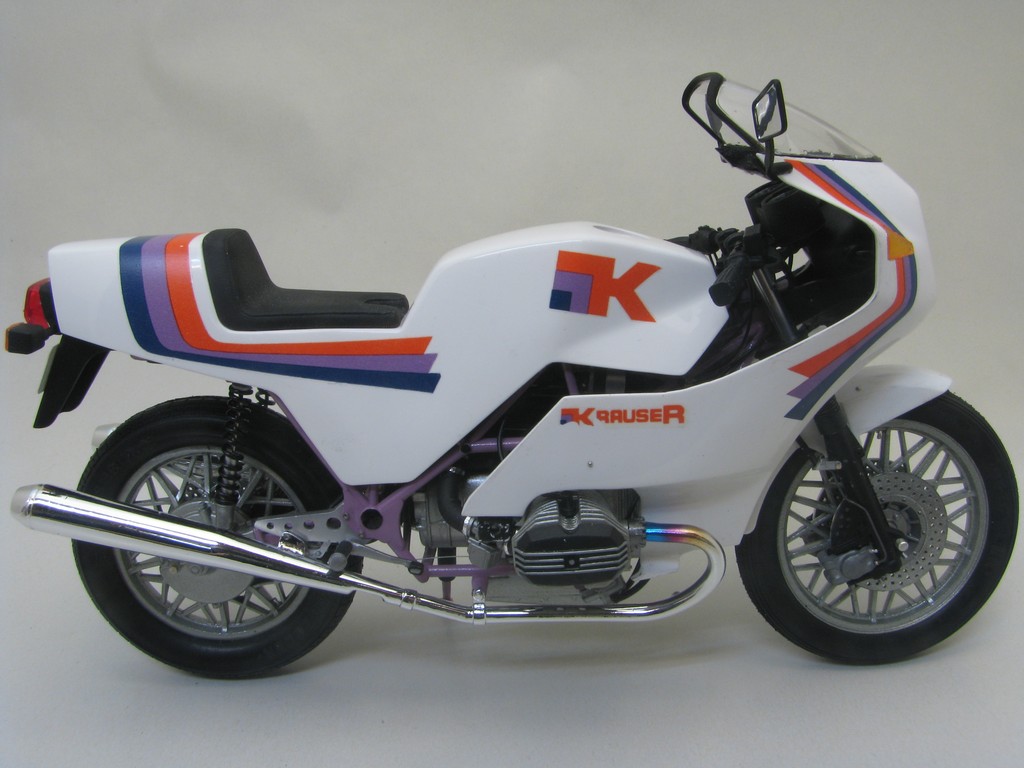

The Krauser luggage company produced saddlebags and other items for motorcycles. As a showcase for its products, it took a
mid-1980's BMW 1000 boxer engine and surrounded it with a space frame and full fairing. They produced a black framed version
and a pink framed version.   Even thought the pink framed version had a more recent front fork, I couldn't resist the colour scheme.

I got stalled on finishing this model for almost 2 years when I was very unsatisfied with the decals. Since I had modified the fairing
to be more like the real one, the decals no longer fit. In addition, they went down with wrinkles and a couple of chipped parts. I
then had the brilliant idea of cutting off some of the stripes on the fairing to remove the damage parts and make it resemble the
stripes on the seat/tank bodywork.

Base Kit(s):   Imai Krauser MKM 1000

Finished:        October 2010

Modifications/Additions:

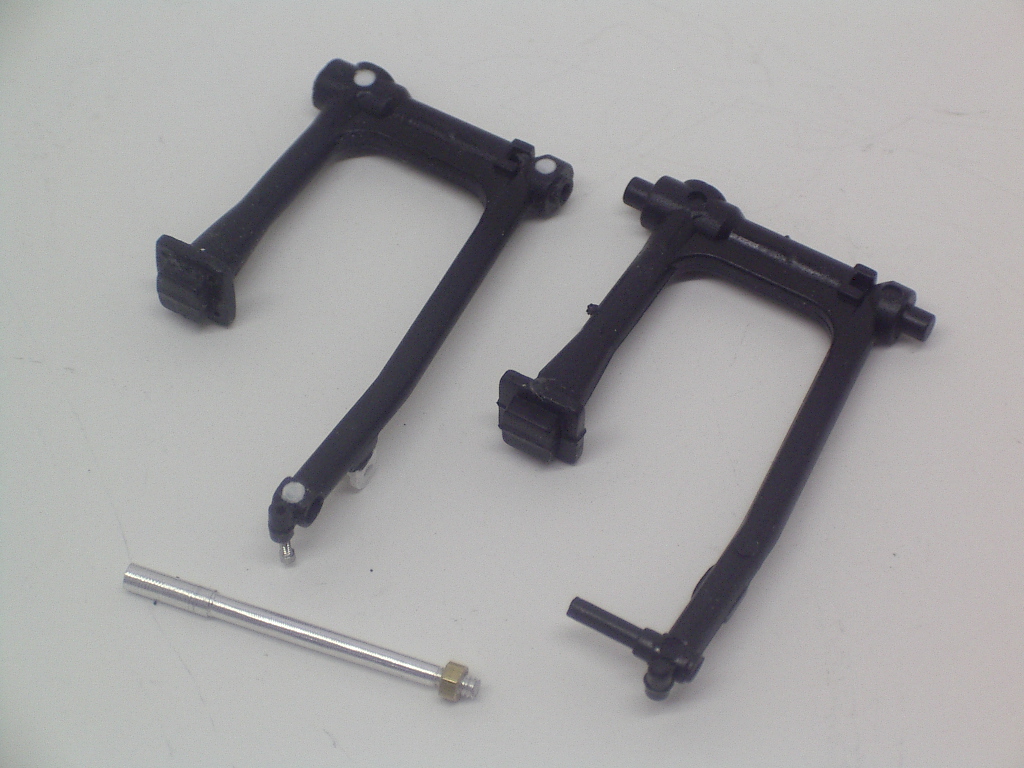

- front and rear axles turned from aluminum rod, including threads for 0-80 nut

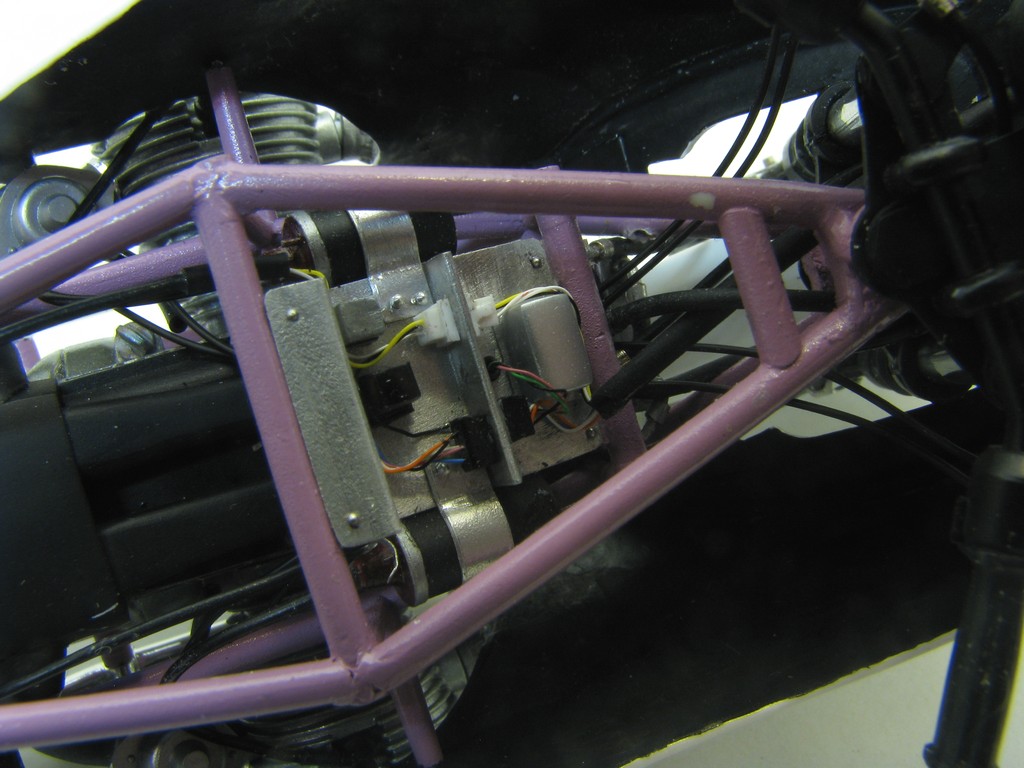

- sheet aluminum for electrics under the tank

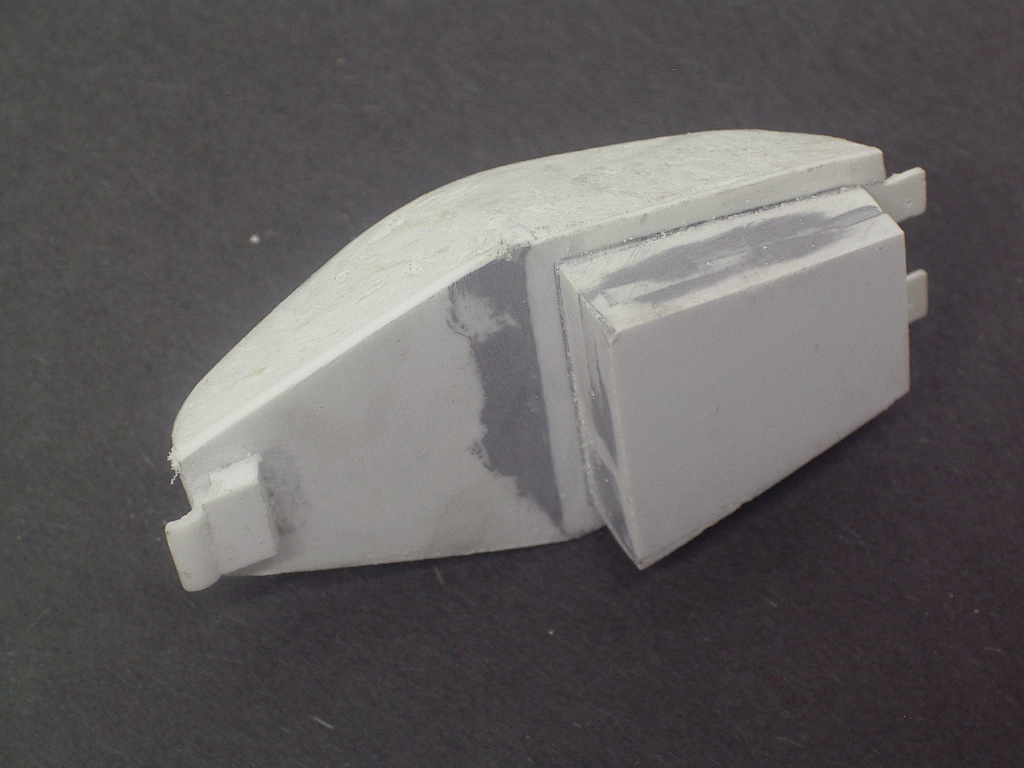

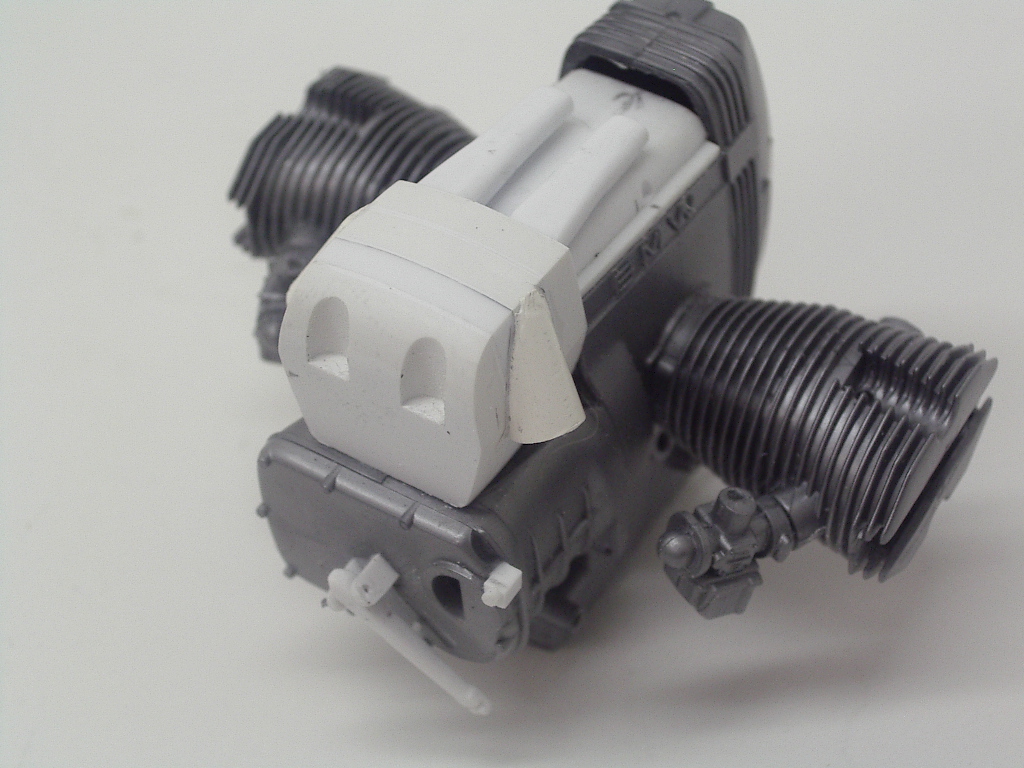

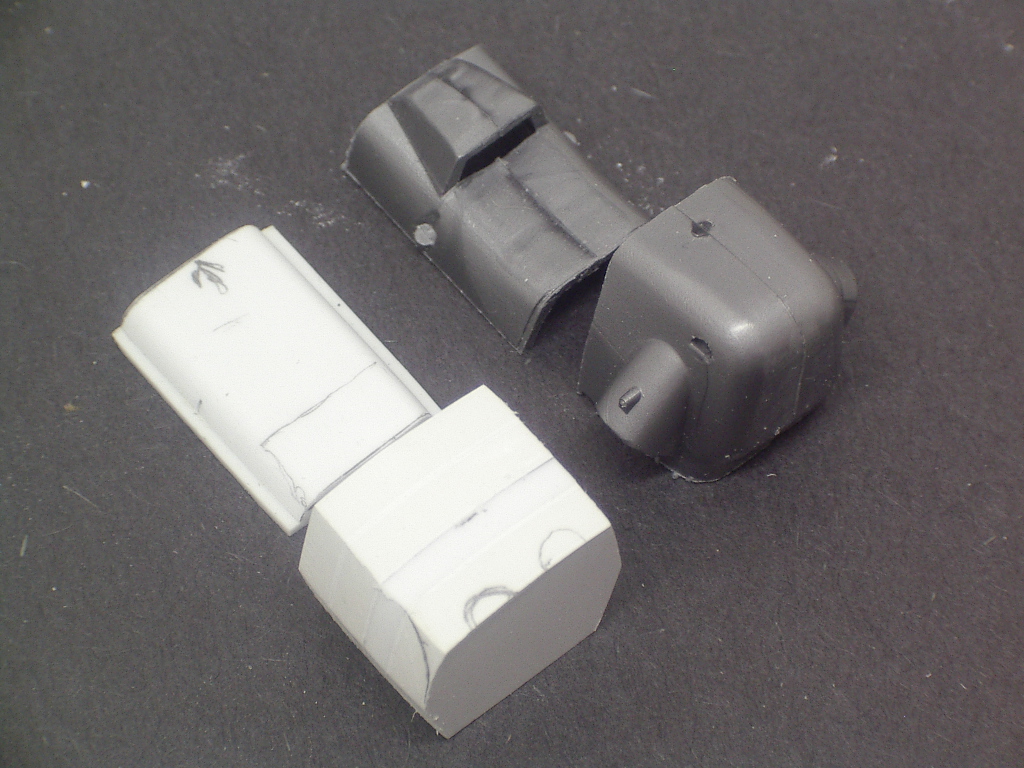

- air cleaner box and scoops built from styrene for more modern square air cleaner

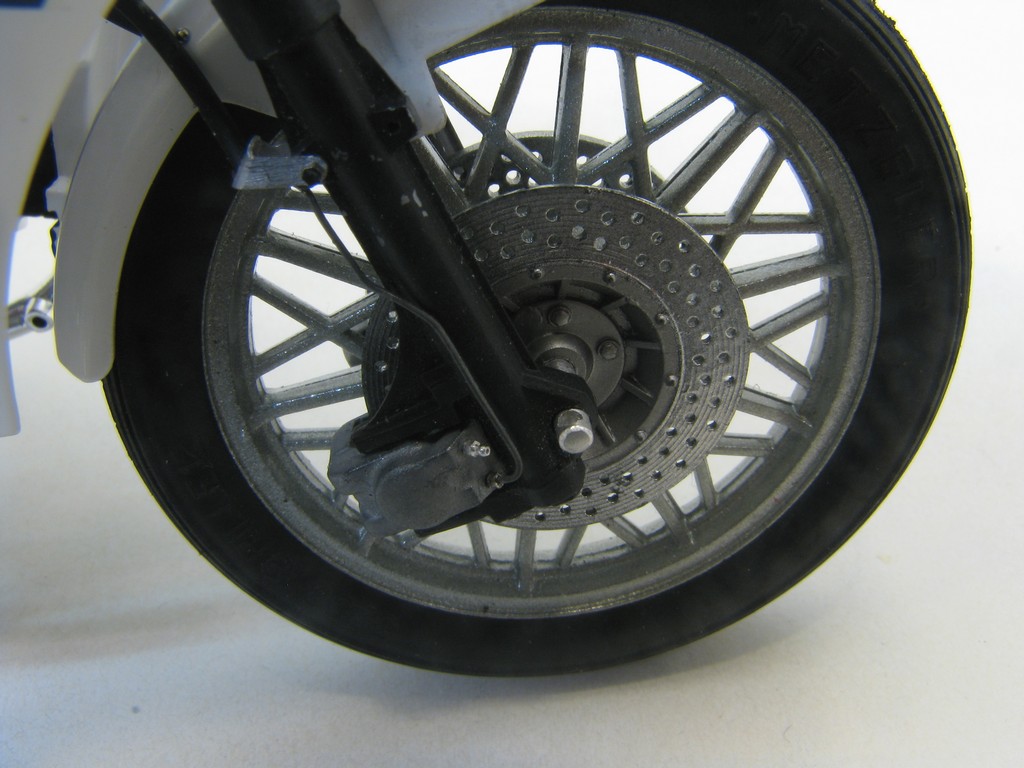

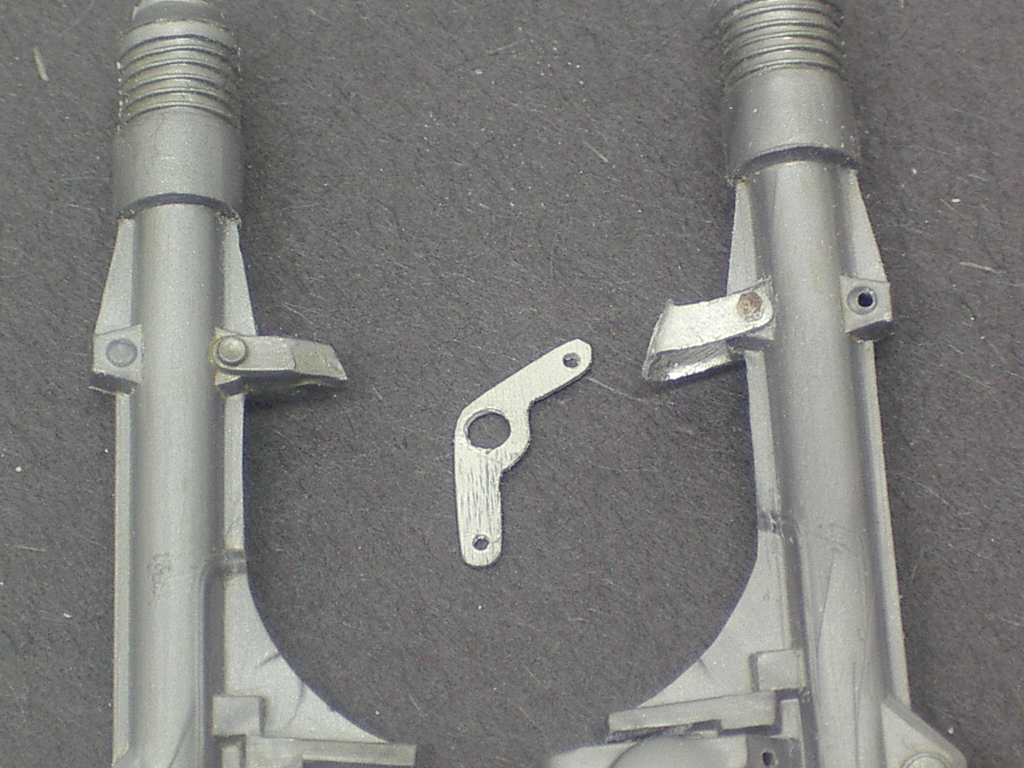

- front fork tubes from polished aluminum
- brake bleeder valves, tire valves and brake line banjo joints from RB motion
- electrics, including ignition coils and connectors from styrene

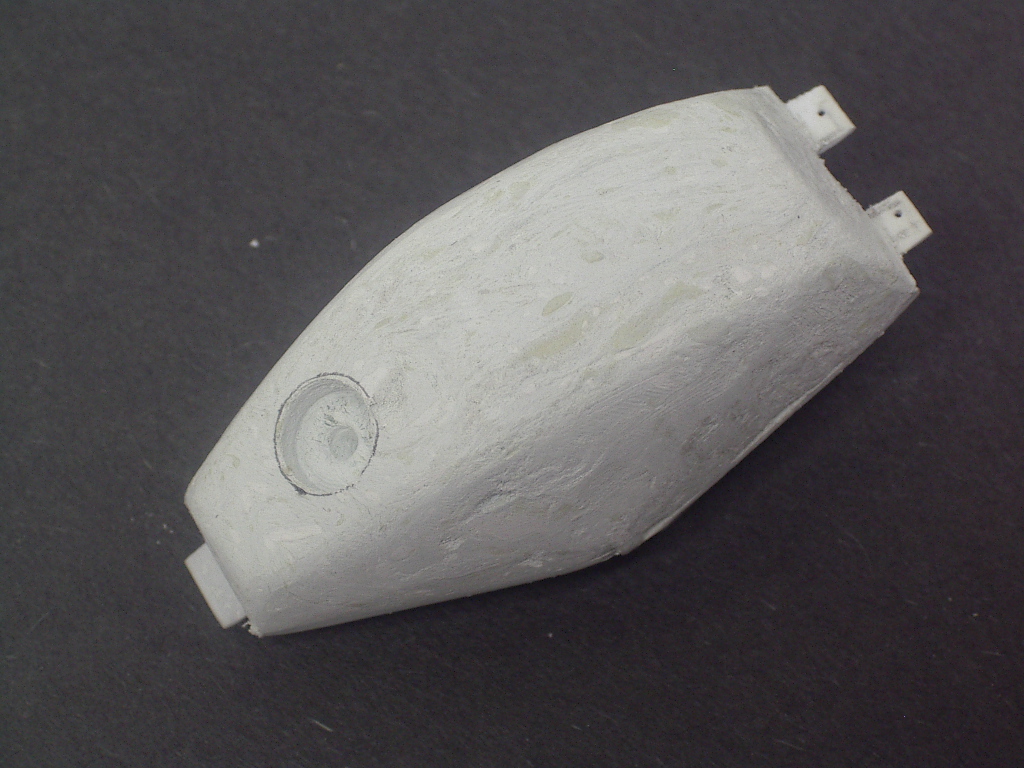

- gas tank was from Milliput two part epoxy putty on styrene base
- lower part of front fairing modified to resemble actual fairing

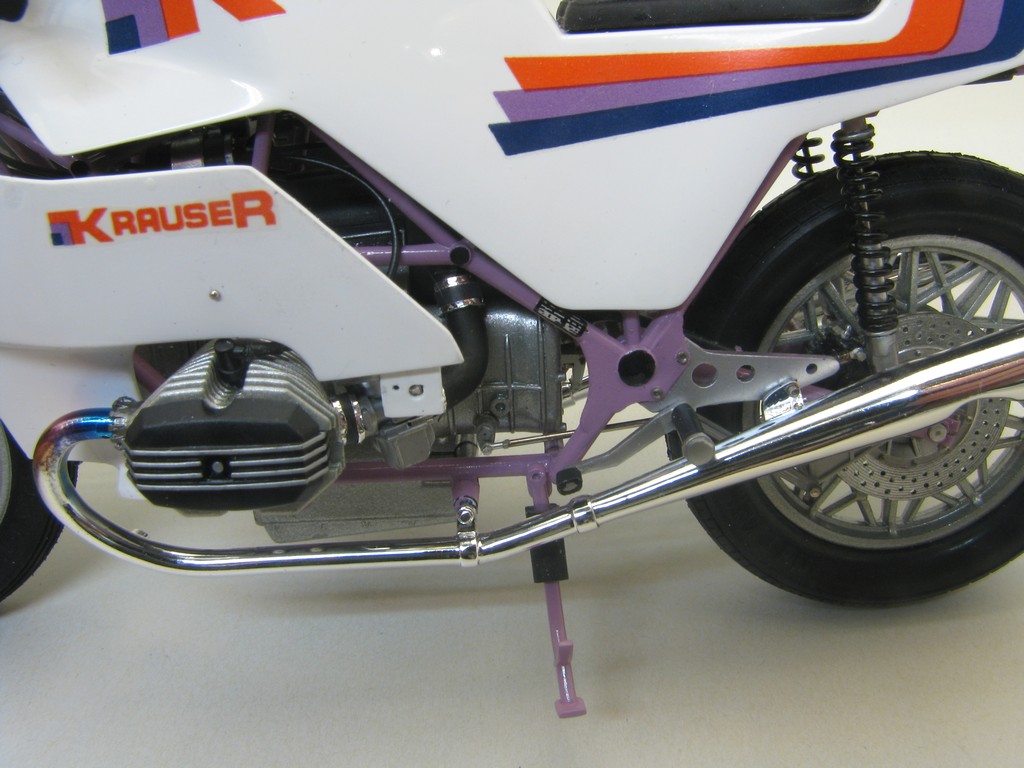

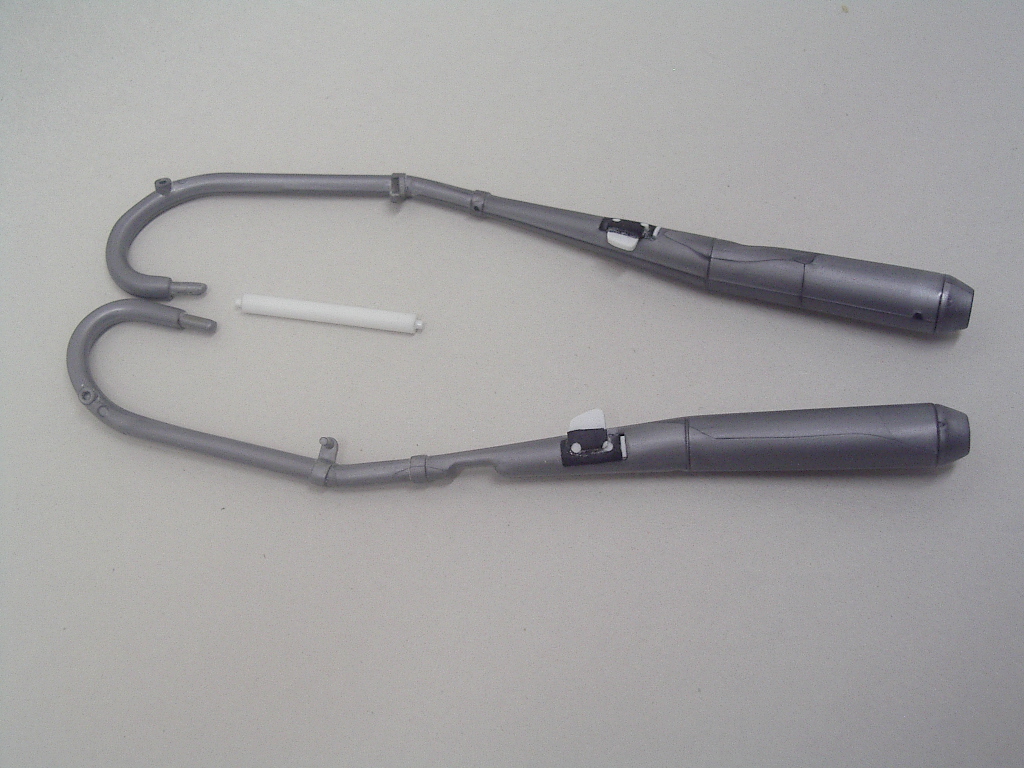

- re-chromed exhaust pipes

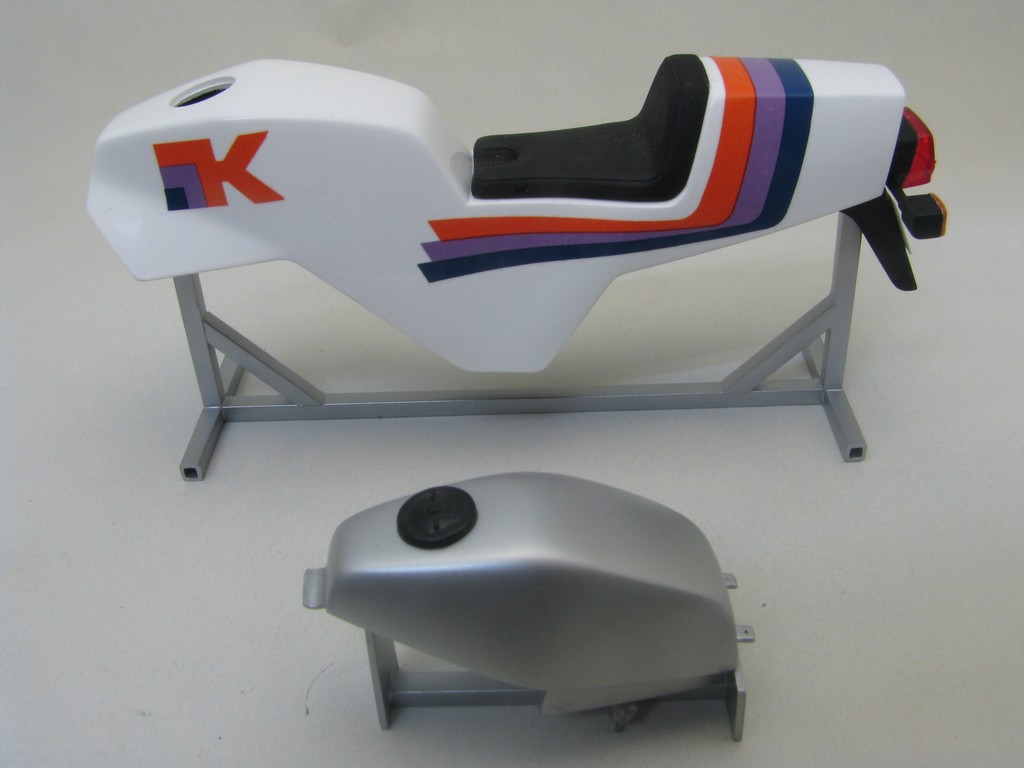

- stand for bodywork and tank from styrene

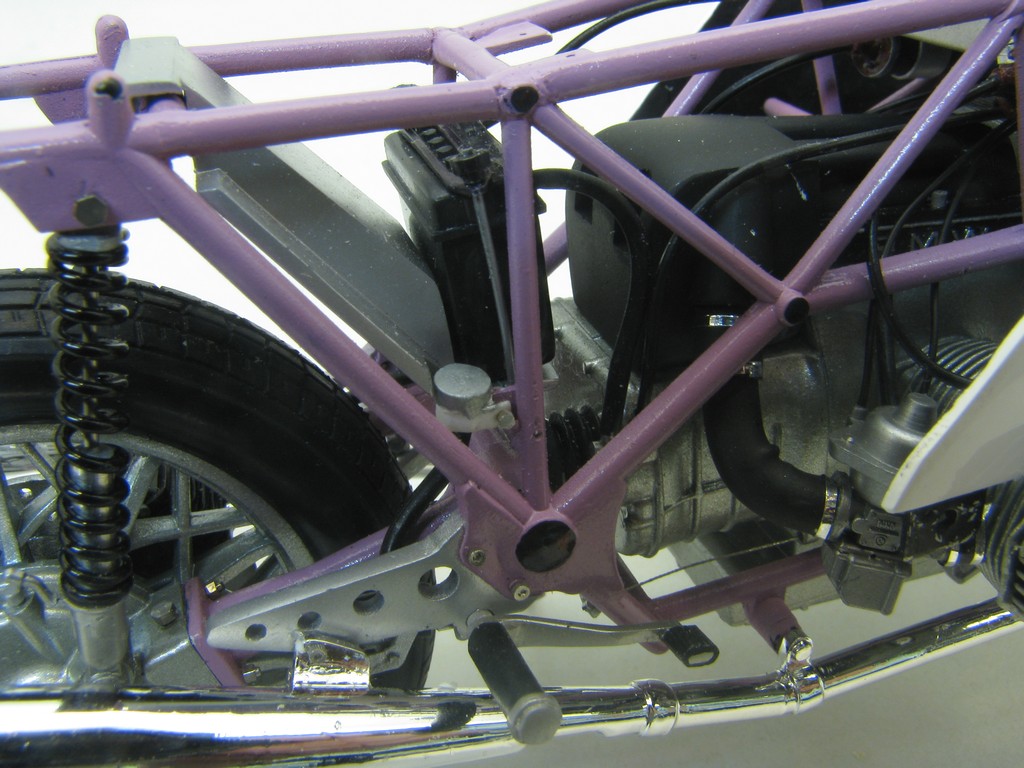

- battery mounting hardware from wire and styrene

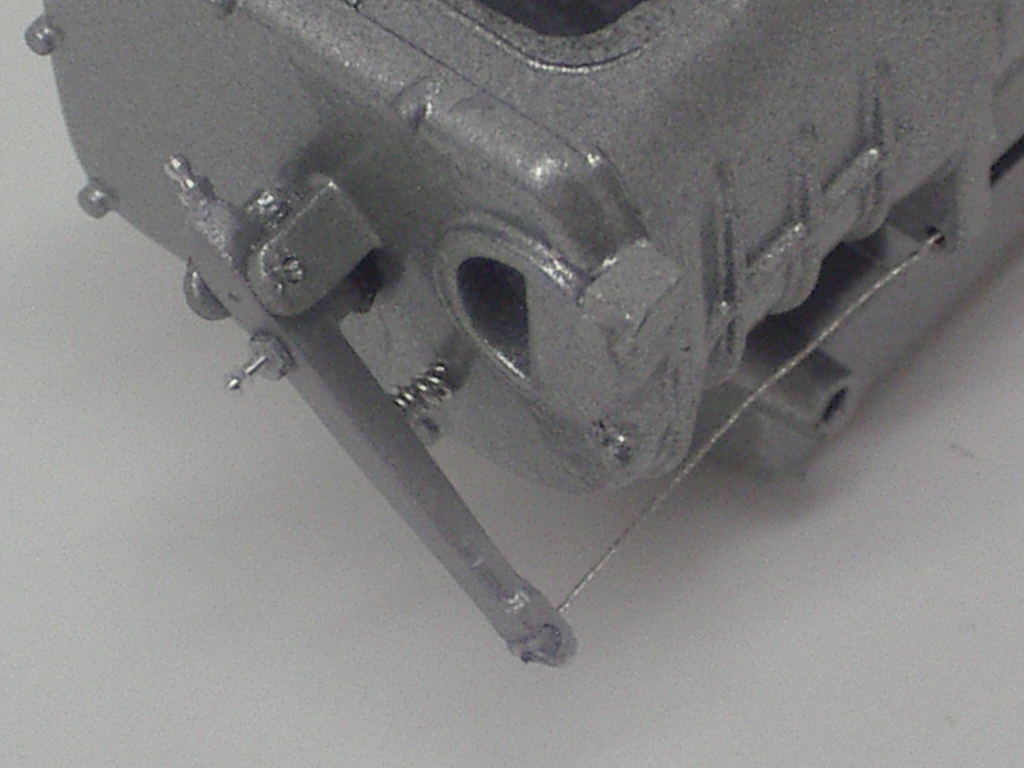

- clutch mechanism at rear of transmission from styrene

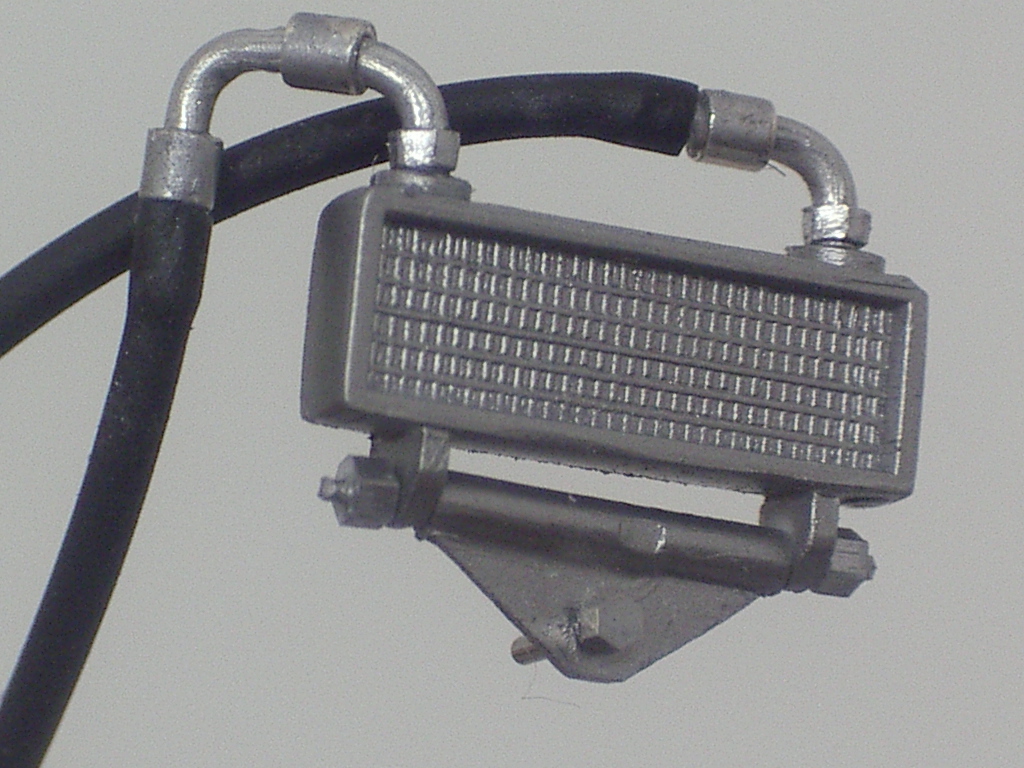

- oil cooler plumbed
- Paint is Testors German Silver on engine and wheels, Tamiya acrylics on frame and Tamiya lacquer on bodywork.

Awards:
Ajax XXX, Ajax, ON, Oct 2010, 2nd place Street Motorcycle

Click on Thumbnail to see detailed image. These images are 1024 x 768 and should load reasonably quickly,
depending on your connection speed.

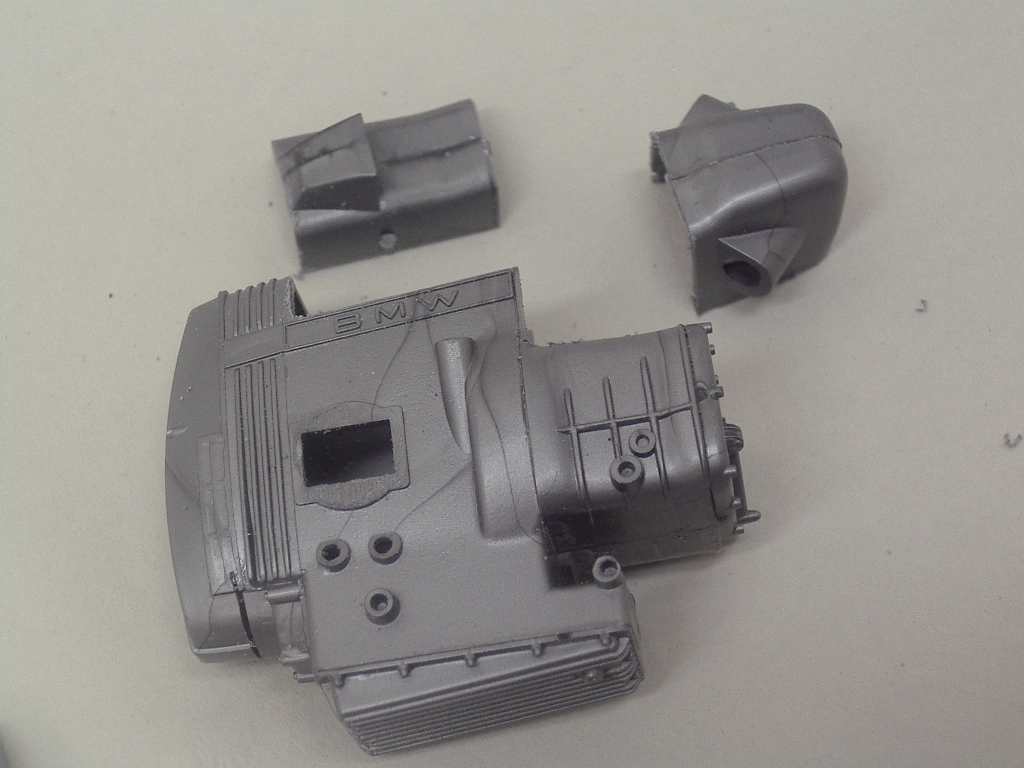

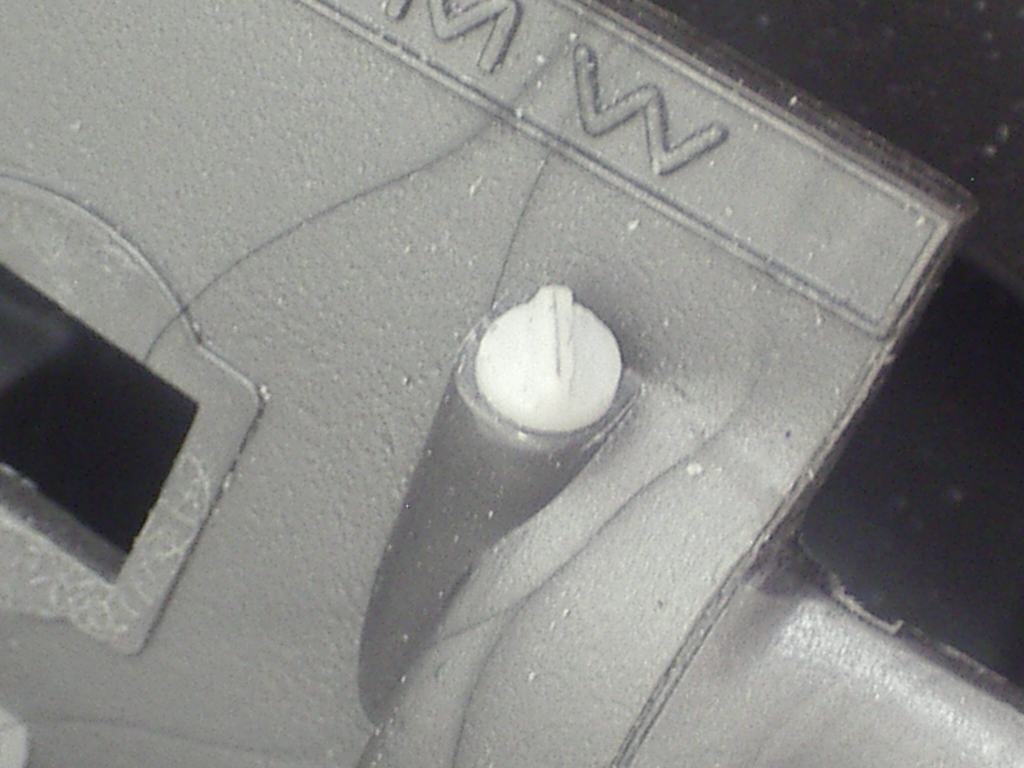

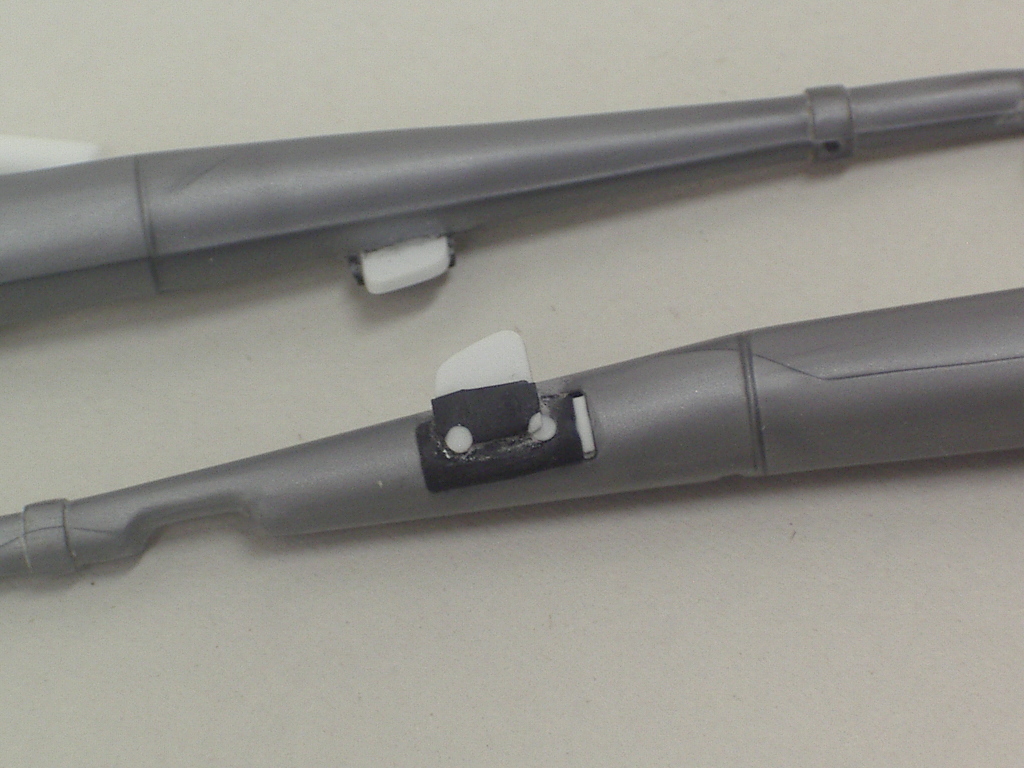

Some build photos
